3000L Overground Waste Container

3000L Overground Waste Container

TECHNICAL SPECIFICATION

The Above Ground Garbage Container System will automatically and manually control the container that can be operated by remote control, by the driver, by getting out of the vehicle or without getting out of the vehicle, and the control organs will be lifted from the lifting systems of the container with the on-board crane, the unloading on the vehicle will be carried out by the remote-controlled lower wings.
Above ground container 3000 LT. garbage collection will have owners.

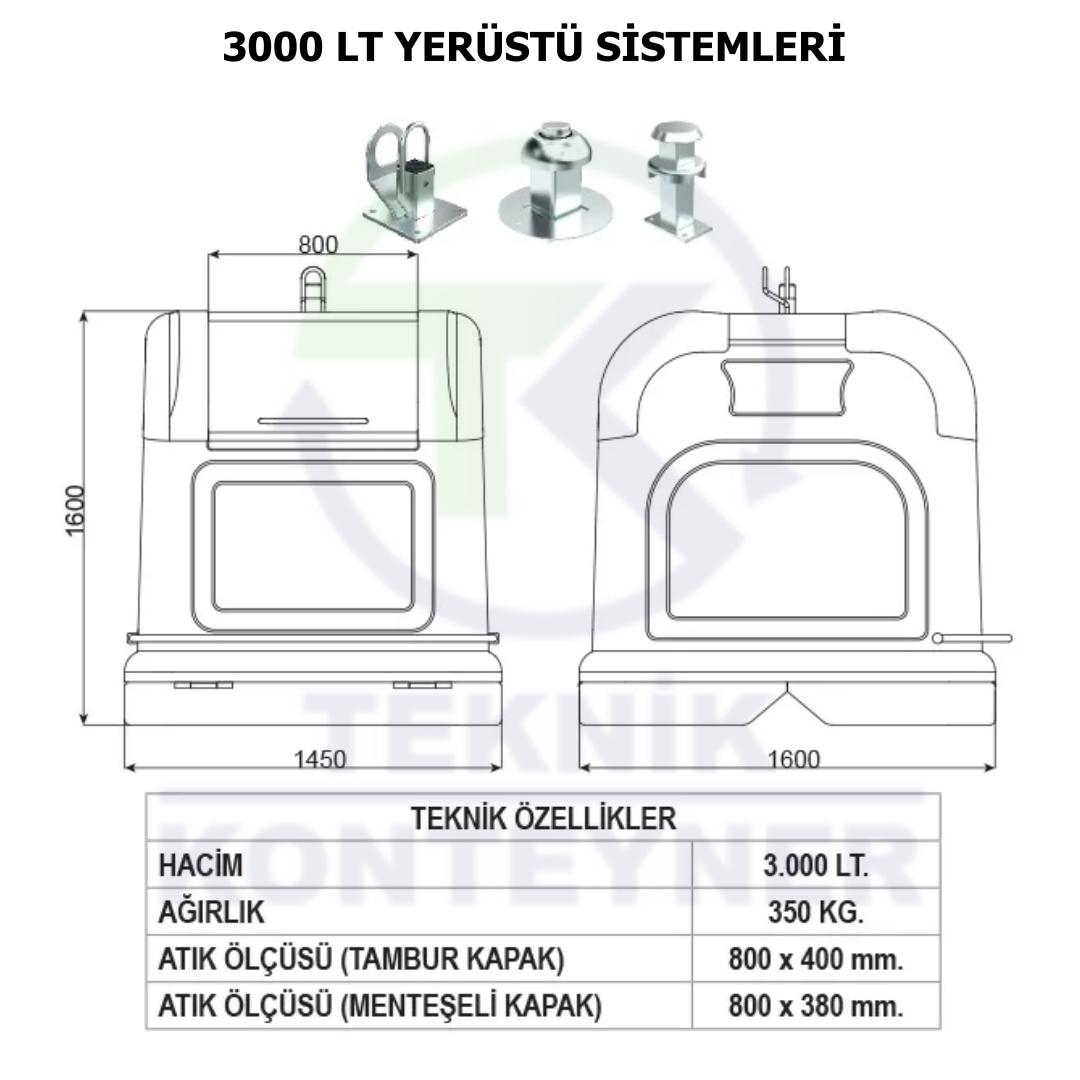

The container body will be at least 1450×1600 and 1600 mm in size.
The body sheet of the container, 2 mm firewalls, will be made of galvanized sheet in accordance with TS EN 10346 Standard, with electro-static oven paint, it will increase impact and environmental warfare.
The upper body sheet of the container will be made of galvanized sheet with 2 mm certificates in accordance with TS EN 10346 Standard, and those determining the impact and peripheral units will be increased with electro-static oven paint.
Bending structures will provide strength to the side body sheets of the aboveground container.
Above ground container system will be mounted & demounted.
Front and back of the above ground container drum system garbage disposal 1,2 mm certificate TS EN 10346
It will be made of galvanized sheet in its standard. It will increase impact and environmental regulations with electrostatic oven paint.
There should be inox sheet metal (AISI 304) at the entrance of the waste container. It ensures that it is more sanitary, prevents drawings and provides an aesthetic appearance.
The drum cover dimensions of the aboveground container will be at least 400 mm x 800 mm and its height from the ground will be 1100 mm.
There will be gas piston for easy opening and opening of drum covers. There will be a hand grip to be held by the user. It is expected with a bearing bearing in the body.
In order to prevent sound and odor on the aboveground container lids, the mounted rubber strip placed on the lower part of the Drum should carry the openings of the drum lids and prevent them from causing some damage.
The frames used in the system will be galvanized with at least 8.8 quality (DIN961– 933), the nuts (DIN 985) will be galvanized with fiber.
The cork lift attachment of the container will be the balance center of the container and the upper part of the container will be mounted by placing the extraction attachment on the 50×50 profile, and it will be such that it can be controlled by the operator from a single point during the removal operations.
The bottom cover sheets will be galvanized at 3 mm certificates in TS EN ISO 1461 standard temperatures. In addition, liquid waste 300
It will be designed to be 160 mm deep, capable of carrying a liter capacity.
In the aboveground garbage containers, there should not be any screws or other mechanical devices on which the garbage can be attached during emptying.
The hinges of the lids should not overflow the contents of the container body, the container body must be connected to the lids by the welded hinges on the lower lids.
Handling precautions on cover opening surfaces are appropriate uses.
In the inner parts of the containers, the mushroom head removal and unloading system will be galvanized in hot devices in accordance with TS EN ISO 1461 standards.
The bottom garbage can be opened 90 degrees so that the garbage can be completely emptied.
Bottom cover opening wings will be made with screw connection and Ø27×3 mm galvanized steel pipe is used.
The back side of the container may be closed. Production will be made according to the requests of the administration.
The colors to be determined by the administration will be painted with electrostatic oven paint.
Garbage containers will be under warranty against corrosion and manufacturing defects for 2 years.
