2500L Overground Waste Container

2500L Overground Waste Container

TECHNICAL SPECIFICATION

The Above Ground Garbage Container System will automatically and manually control the container that can be operated by remote control, by the driver, by getting out of the vehicle or without getting out of the vehicle, and the control organs will be lifted from the lifting systems of the container with the on-board crane, the unloading on the vehicle will be carried out by the remote-controlled lower wings.

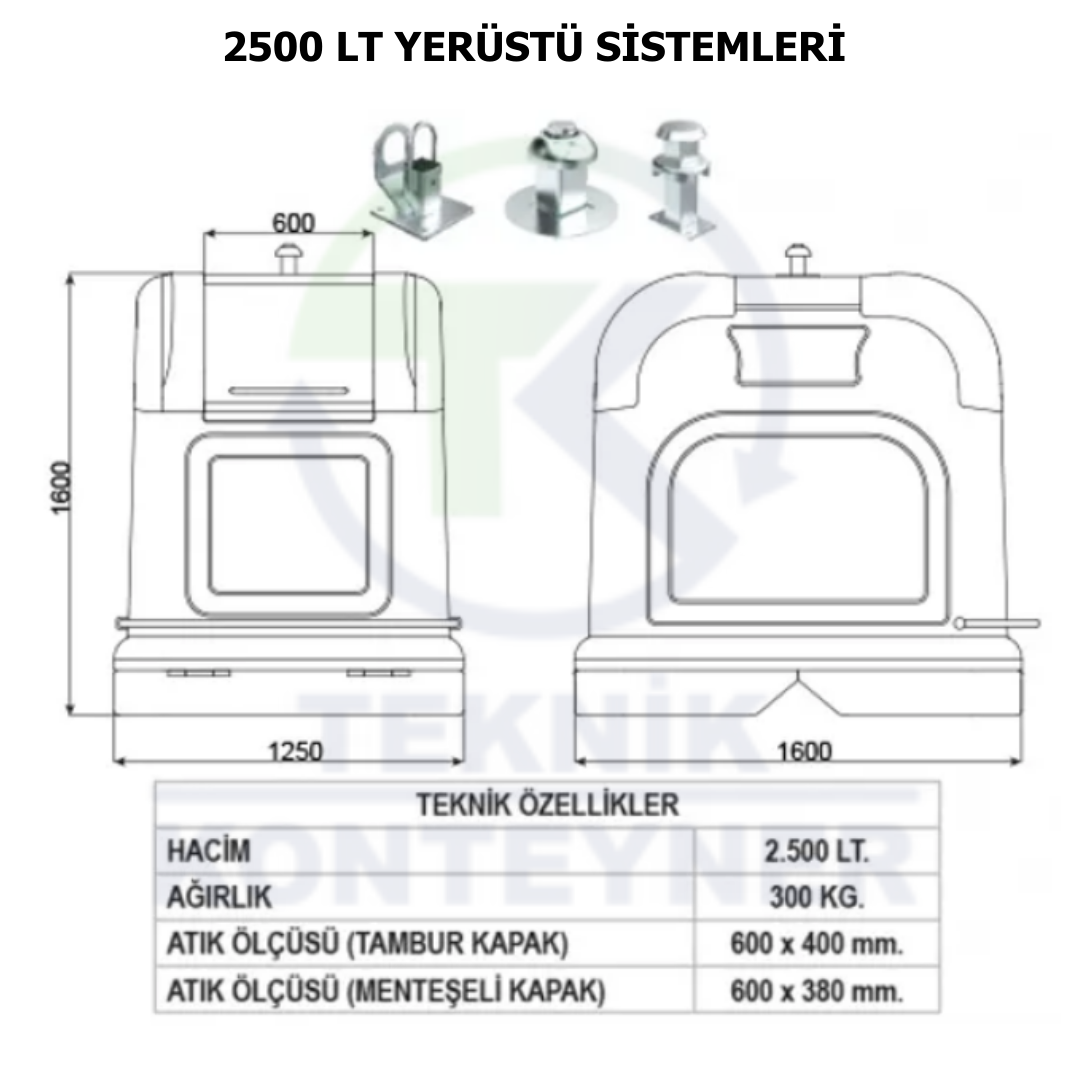

Above ground container 2500 LT. garbage collection will have owners. The container body will be at least 1250×1600 and 1600 mm in size.
The body sheet of the container will be made of galvanized sheet with 2 mm standards in accordance with TS EN 10346 Standard, and the impact and environmental regulations will be increased with electro-static oven paint.
The upper body sheet of the container will be made of galvanized sheet with 2 mm standards in accordance with TS EN 10346 Standard, with electro-static oven paint, it will increase the placement of impact and surrounding soldiers.
Bending structures will provide strength to the side body sheets of the aboveground container.
Above ground container system will be mounted & demounted.
The front and rear parts of the above-ground container will be made of galvanized sheet metal in accordance with TS EN 10346 Standard with a drum system garbage disposal with a 1.2 mm certificate. It will increase impact and environmental regulations with electrostatic oven paint.
There should be inox sheet metal (AISI 304) at the entrance of the waste container. It ensures that it is more sanitary, prevents drawings and provides an aesthetic appearance.
The drum cover dimensions of the aboveground container will be at least 400 mm x 600 mm and its height from the ground will be 1100 mm.
There will be gas piston for easy opening and opening of drum covers. There will be a hand grip to be held by the user. It is expected with a bearing bearing in the body.
In order to prevent sound and odor on the aboveground container lids, the mounted rubber strip placed on the lower part of the Drum should carry the openings of the drum lids and prevent them from causing some damage.
Frames used in the system will be galvanized with at least 8.8 quality (DIN961-933), nuts (DIN 985) will be galvanized with fiber.
The cork lift attachment of the container will be the balance center of the container and the upper part of the container will be mounted by placing the extraction attachment on the 50×50 profile, and it will be such that it can be controlled by the operator from a single point during the removal operations.
The bottom cover sheets will be galvanized at 3 mm certificates in TS EN ISO 1461 standard temperatures. In addition, it will be designed to carry liquid waste with a capacity of 240 liters and a depth of 160 mm.
Above ground garbage containers should not have screws or other mechanical assembly that the garbage can be attached to during unloading, the hinges of the bottom covers should not overflow the contents of the container body, the container body must be connected to the covers in the welded hinges on the bottom covers.
Handling precautions on cover opening surfaces are appropriate uses.
In the inner parts of the containers, the mushroom head removal and unloading system will be galvanized in hot devices in accordance with TS EN ISO 1461 standards.
It will be opened 90 degrees to completely empty the bottom garbage garbage.
Bottom cover opening wings will be made with screw connection and Ø27×3 mm galvanized steel pipe is used.
The back side of the container may be closed. Production will be made according to the requests of the administration.
The colors to be determined by the administration will be painted with electrostatic oven paint.
Garbage containers will be under warranty against corrosion and manufacturing defects for 2 years.
